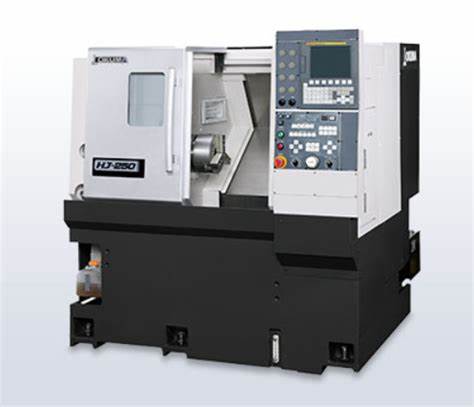

HJ 250
OSP
OSP
Characteristics
Model variations
| 3350 | 2160 |
 |  |
| Category | Item | Specification |
| Capacity | Swing over bed[mm] | 450 |
| Workpiece | Workpiece diameter[mm] | 280(T1 V8) 220(T1 V12) |
| Workpiece length[mm] | 200 290 | |
| Chuck | Chuck size(S1)[in] | 8 |
| Tool post 1(T1) | No. of tool stations[ea] | 8 |
| No. of tool stations(option1)(T1)[ea] | 12 | |
| Travels | Stroke X[mm] | 160(-20~140) |
| Stroke Z[mm] | 330 | |
| Rapid traverse(X)[m/min] | 20 | |
| Rapid traverse(Z)[m/min] | 25 | |
| Category | CNC brand | OSP Fanuc |
| CNC system | OSP-P300LA/0iTF | |
| Origin | Japan |
Turning spindle 1(S1)
| Spindle name | S1-1 | S1-2 | Turning spindle no. 1 max. speed[r/min] | 30~3000 | 4200 | Bearing inner dia.(front)[mm] | 100 | 100 | Interface(S1) | A2-6Available chucks | A2-6Available chucks | Turning spindle 1 thru hole dia.[mm] | 62 | 62 | Output[kW] | 5.5(Constant)！7.5(15min) | 7.5(Constant)！11(15min) | Torque[Nm] | 61.6(Constant)！83.8(15min) | Turning spindle 1 transmission |
Tool post #1(T1)
| Name | T1-1(V8) | T1-2(V12) | Tool holder | Tool shank | 25 | 25 | Boring bar | 40 | 32 | Position | 8 | 12 | Index time | 0.3 | 0.3 | Speed | Power | Torque |
Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
